Legacy Stoves SF170
The SF170, the upgraded version of the SF 260 coal boiler, is a flexible, compact, yet powerful heating option that burns up to three different sizes of coal. It also has a domestic hot water coil, allowing you to heat your home’s hot water.
Maintenance on the SF170/270 is simple. Horizontal water tubes add strength and additional thermal efficiency. A large ash tub provides less frequent ash removal. Intuitive user controls are easily accessible and offer automatic temperature management.
Compare our product weight versus the competition at the same BTU output. We use heavier plates throughout our product lines. Rugged, over-engineered stoves, furnaces, and boilers are a standing tradition for Legacy Stoves. Fuel flexibility is also outstanding, with the option to use pea, nut, or stove-sized anthracite coal. Lump bituminous and graded bituminous coals may also
be used.
- Heating is extended by burning fuel to fine ash completely with the Legacy Grate System
- 90,000 BTUs — Based on climate and home efficiency, heats 1,000 to 3,200 square feet
- Consistent heat levels are ensured by the schedule 80 steel pipe water-cooled baffle
- Domestic coil option
- Nut, pea, or stove-sized coal + lump bituminous
- New! Included with WH Certification
- New! Included with ASME H Stamp
- New! Increased heat exchange surface area!
- New! High-quality powder coat finish!
Clearance to Combustibles are as follows: Front: 48″; Sides 18″; and Rear 36″
| BTU Hour/Input | 90,000 |
|---|---|
| Heating Capacity | 1,000 – 3,200 sq ft. |
| Fuel Type | Anthracite, Bitumimous (Pea, Nut, Stove, & Lump) |
| Weight | 1050 lbs |
| Domestic Hot Water Coil | Optional |
| Automatic Draft | Standard |
| Forced Draft Blower | N/A |
| Non-Electric Conversion | Optional |
| Flue Size | 8" |
| Number of Grates | 4 |
| Firebox Size | =22 x W=15.5 x H=19 |
| Firebox Cubic Feet | 3.6 |

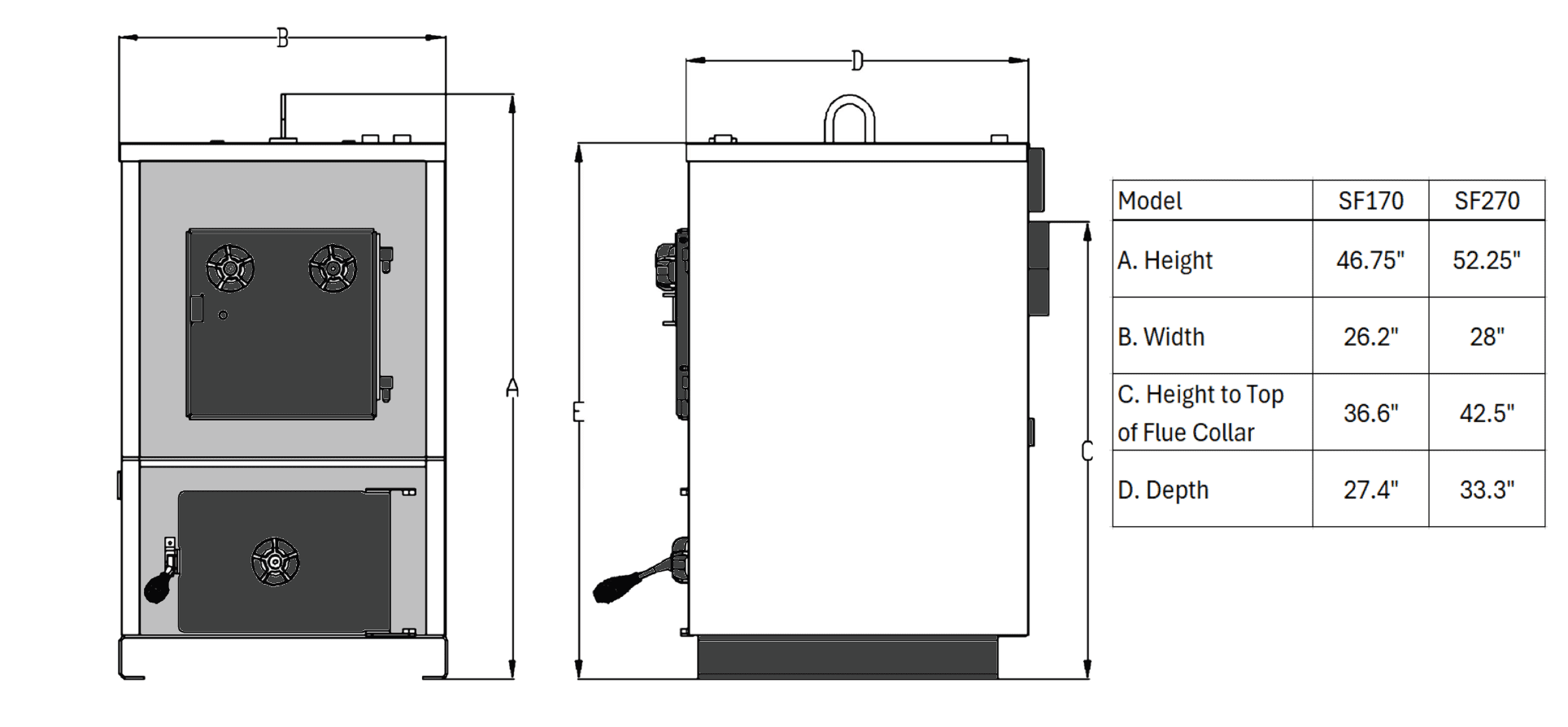

| Width | 26.2" |
| Height | 46.75" |
| Depth | 27.4" |
| Height to Top of the Flue Collar | 36.6" |
| Inlet/Outlet Pipe Size | 1.5" |
| Max Water Pressure | 30 psi |
| Certifications | UL/ASME |
