DS Stoves Aqua-Stoke
Models: DSSB200
250,000 BTU
Auger-Fed Anthracite Boiler
Made In Lancaster County, PA
Built To Perform

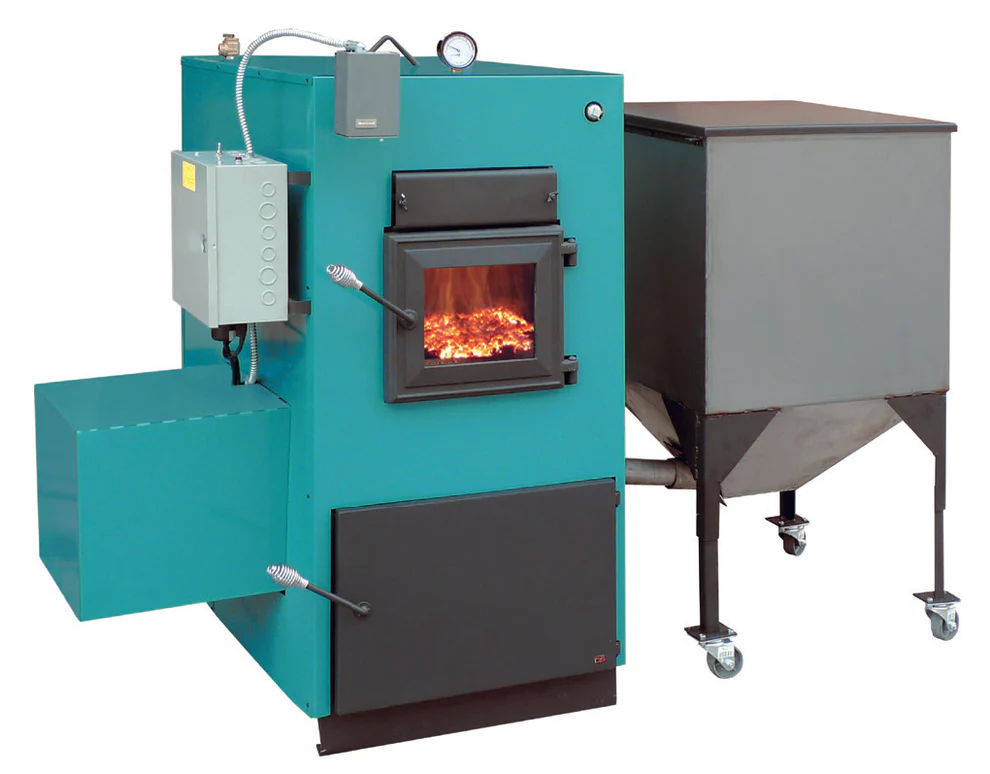

The SB200 auger-fed stoker boiler features a rugged pot burner built to handle anthracite rice with precision and power. Engineered for heavy-duty performance, it pairs seamlessly with an optional 500 lb. hopper or coal bin, ensuring a continuous, hassle-free fuel supply. Every inch reflects DS’s ‘Trust In Quality’ philosophy—because lasting warmth starts with lasting design.
| Fuel | Anthracite Rice |
|---|---|
| Heating Area | 1,000 – 5,000 sq. ft. |
| Heating Area (Greenhouse) | 500 – 2,500 sq. ft. |
| BTU | 50,000 – 230,000 |
| Efficiency | 82.8% |
| Rear Exhaust | 8” |
| Water Capacity | 50 Gallons |
| Inlet / Outlet | 2.00” |
| Fire Box (WxDxH) | 20” x 18” x 18.25” |
| Burn Pot Size | 10” |
| Fire Door (WxH) | 13.75” x 12” |
| Ash Pan (WxDxH) | 22” x 21” x 10” |
| Ash Door (WxH) | 24” x 15.5” |
| Overall Size (WxDxH) | 27” x 40” x 53” |
| Width w/ Blower & Control Box | 43” |
| 500 lb. Hopper (WxDxH) | 26” x 26” x 48” |
| Total Width w/ 500 lb. Hopper | 77.5” |
| Weight | 1,175 lbs. (Base 176 lbs., |
| Insulated Jacket | Optional |
| U.L. Tested | Yes |
