WL-110 Dual Fuel Boiler

A two piece boiler designed with our  coal stoker feeder as a base unit. The pressure vessel/oil burner unit sits on top and is manufactured by Axeman-Anderson. It Can also be fitted with a Natural Gas or Propane burner for additional charge. The WL-110 burns rice-sized or buckwheat-sized Anthracite Coal. Flue Clean out standard. Optional 5GPM DHW Coil and 320 lbs. hopper. Note: Switch over between fuel source is not automatic.
This unit will service an average home of 2,500 – 3,000 square feet at a very low cost. Note::::Free shipping is to business. Liftgate and residential is extra cost.

Description

Weight 500 lbs

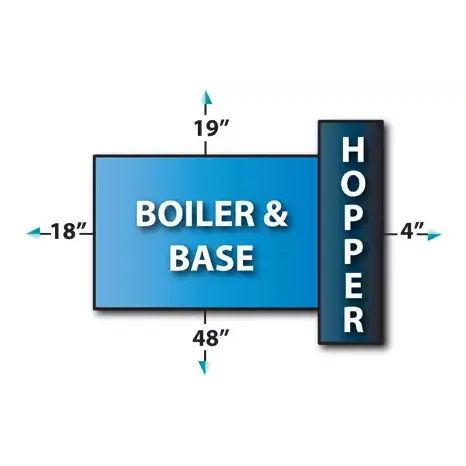

Dimensions 34 × 28 × 54 in
Output Heats up to 3,000 sf
Hopper Holds 200 lbs.
Water Capacity 12 Gallons
DHW Coil 3 GPM
Input BTUH 110,00

Description
This Leisure Line Boiler offers dual fuel capability at a price unmatched by our competitors. The WL-110 is a two piece design with a Leisure Line base unit featuring our
reliable coal stoker feeder. The pressure vessel/oil burner unit sits on top and is manufactured by Axeman-Anderson with over 60 years experience in the industry and can also be fitted with a Natural Gas or Propane burner for additional charge. This product was introduced in 2010 and has proven to be reliable and efficient.

This WL-110 hydronic, UL Tested boiler is capable of heating the typical single family home up to 3,000 sq. ft. and can also be rated for installation in a commercial establishment. This quality American made WL series 165k btuh rated pressure vessel is a vertical firetube design with 15 sq ft of heating surface, 12 gallon water capacity, and is ASME certified and is AFUE rated at 86% efficient when burning oil. With the addition of a Leisure Line combustion chamber diffuser and firetube economizers this unit yields up to 90% efficiency when burning coal. Even though low in price this boiler is not short on features, it comes standard with the following components: Taco 007 circulator; Honeywell 7124 or Hydrostat 3250 Triple Aquastat, Honeywell 6006A High Limit; a idle fire circuit to keep the fire lit; a 3 GPM Domestic Hot Water Coil; a Becket AFG oil gun with GeniSys controls and electronic ignition; large ash pan and 200# hopper; 110K btuh input coal stoker unit.
The WL-110 burns clean Rice or Buckwheat sized Pennsylvania mined Anthracite Coal and will pay for itself in a short time while helping to reduce American dependence on
foreign oil.
