Ventis Wood Insert HEI350

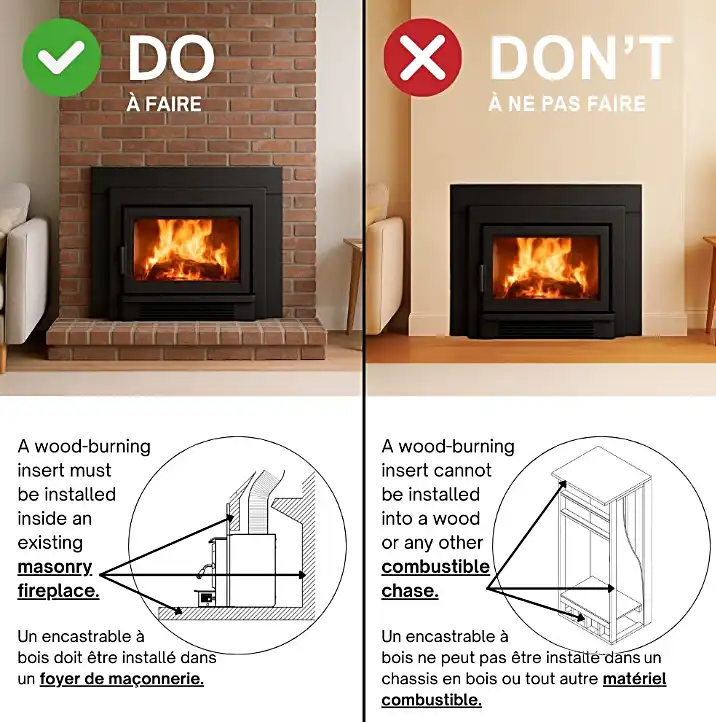

Warning: Wood-burning inserts must only be installed inside an existing masonry fireplace and never in a wooden or combustible structure.
Required option: regular faceplate (VBA1557) or large faceplate (VBA1558)
- Extra-large size wood insert
- Glass airwash system for a cleaner view of the flames
- EPA certified
- C-Cast heat shield added to the firestop
- Non-catalytic combustion technology
- Cast iron door
- 144 CFM blower
- Proudly made in Canada
| Mobile Home Approved | No |
|---|---|
| Premium Quality Blower (CFM) | 144 CFM included |
| Certified According to Applicable Standards | CAN/USA accredited laboratory |
| Combustion Technology | Non-catalytic |
| Stainless-Steel Secondary-Air System | Yes |
| Flue Outlet Diameter | 6" |
| Recommended Chimney Diameter | 6" |
| Type of Chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum Chimney Height | 12' |
| Overall Dimension (Width) | 30 1/2" |
| Overall Dimension (Height) | 24 7/8" |
| Overall Dimension (Depth) | 29" |
| Door Type | Single, glass with cast iron frame |
| Door Opening Size (Width) | 19" |
| Door Opening Size (Height) | 9 1/4" |
| Glass Type | Ceramic glass |
| Glass Surface - W x H | 18 3/8" x 11 1/2" |
| Steel Thickness - Body | 3/16" |
| Steel Thickness - Top | 5/16" |
| Firebox Size (Width) | 22 7/8" |
| Firebox Size (Height) | 12 7/8" |
| Firebox Size (Depth) | 20 1/8" |
| Maximum Log Length | 22" |
| Log Positioning | Loading over width and over depth |
| Firebox Lined with Refractory Bricks | Yes |
| Baffle Type | High quality vermiculite |
| Minimum Fireplace Opening (Width) | 31" |
| Minimum Fireplace Opening (Height) | 26 1/4" |
| Minimum Fireplace Opening (Depth) | 18 3/8" |
| High-Efficiency Certified Appliance | Yes, EPA 2020 approved |
| Canadian Standard (Emissions) | CSA B415.1-10 |
| USA Standard (Emissions) | EPA |
| Canadian Standard (Safety) | ULC S628 |
| USA Standard (Safety) | UL 1482, UL 737 |
| Warranty | Limited lifetime |
| Shipping Weight | lb (kg) |
