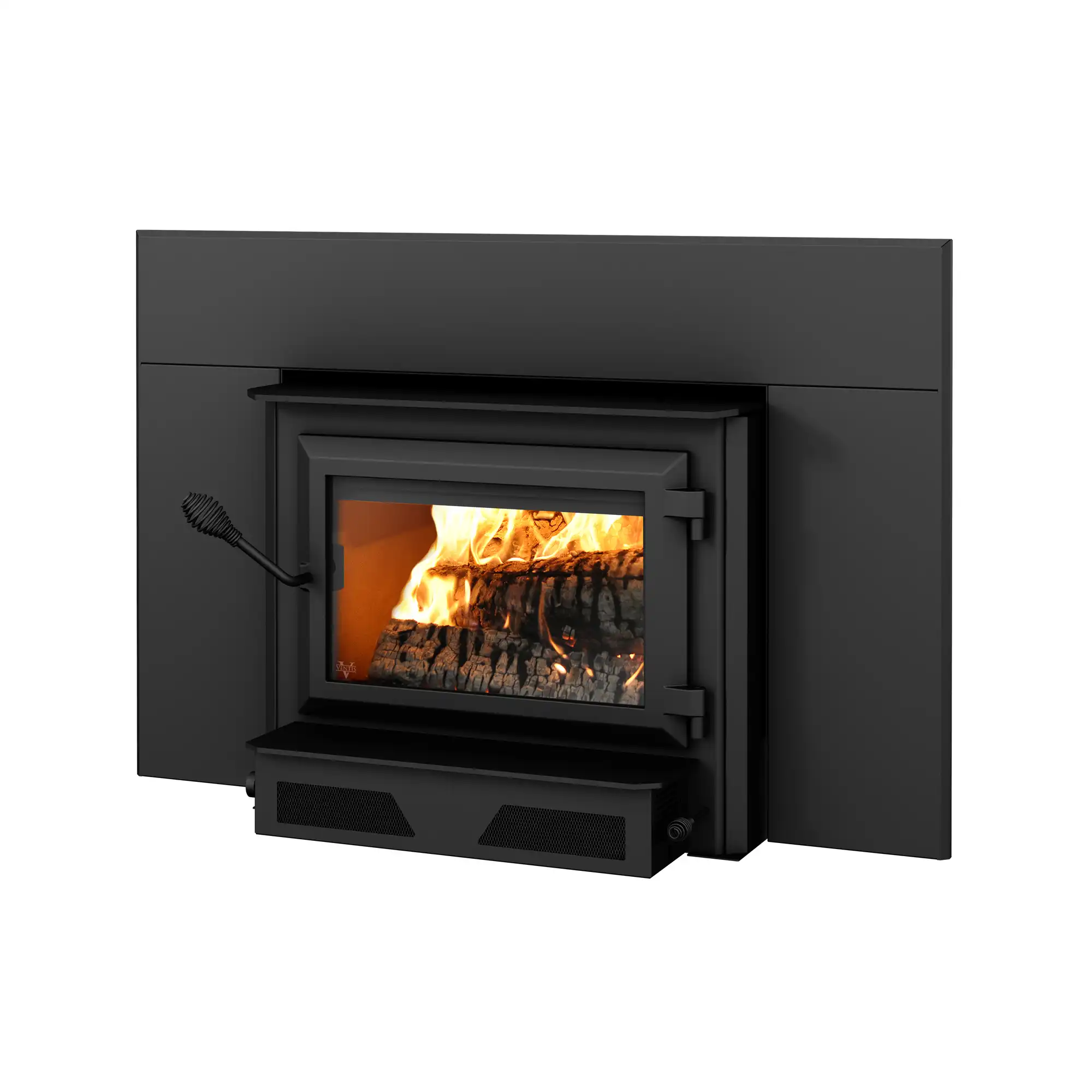

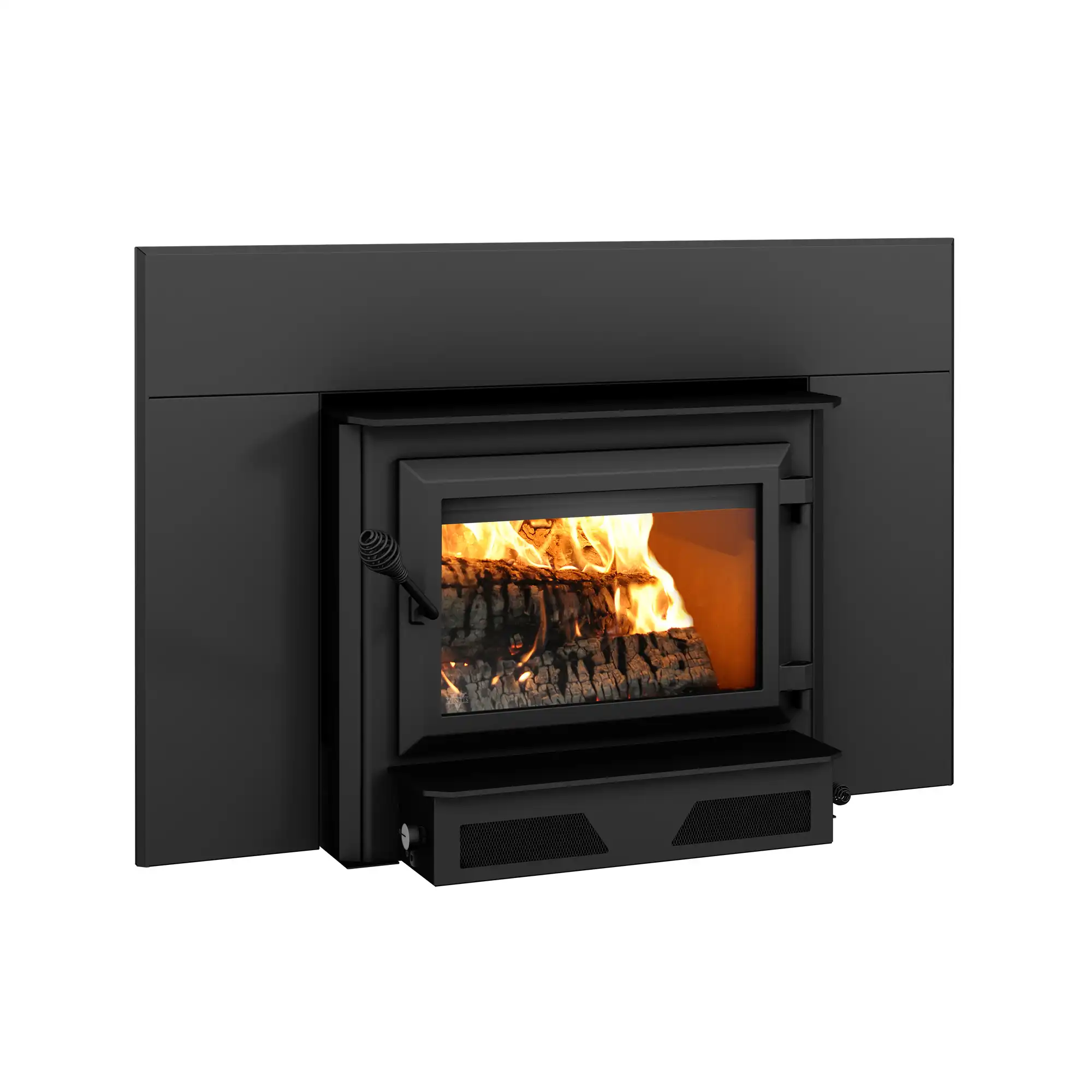

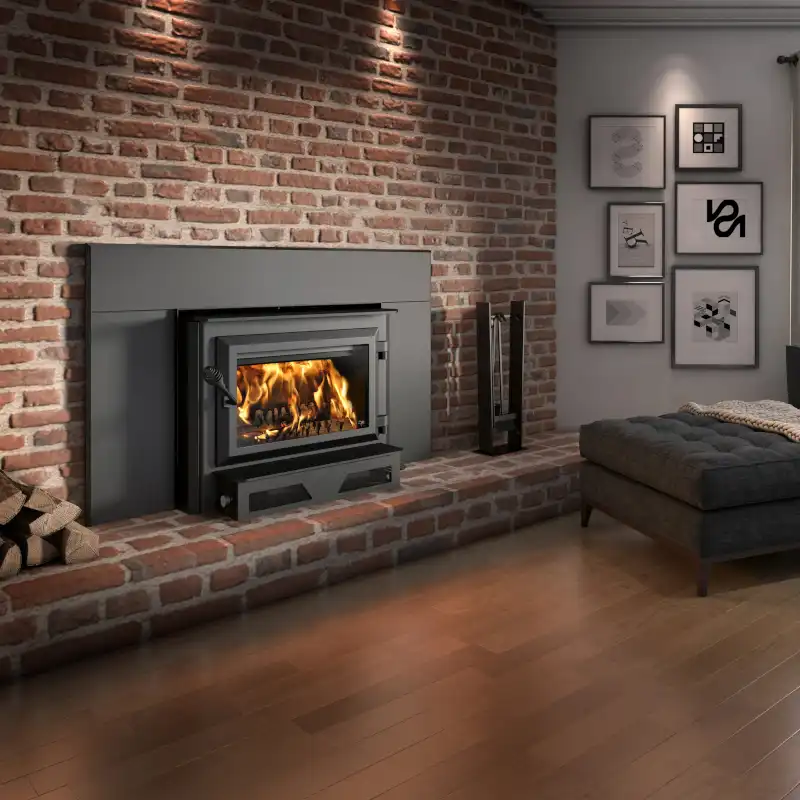

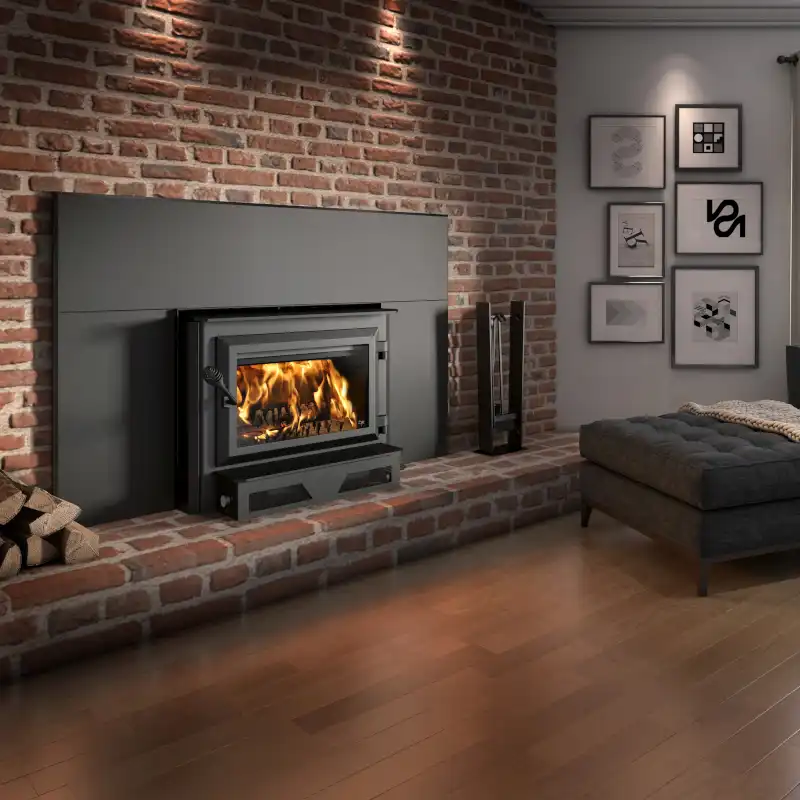

Ventis Wood Insert HEI240

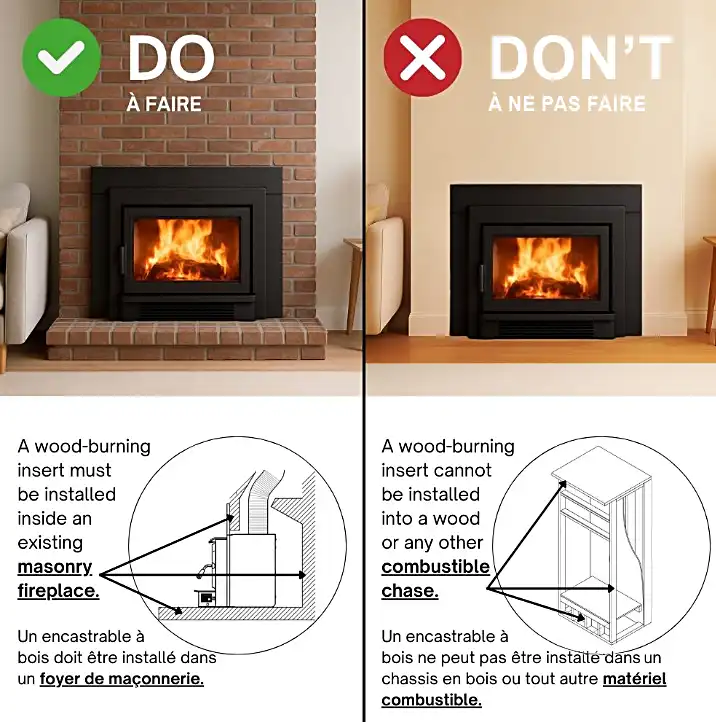

Warning: Wood-burning inserts must only be installed inside an existing masonry fireplace and never in a wooden or combustible structure.
Required option: regular faceplate (VBA1550) or large faceplate (VBA1551)
- Medium-sized wood insert
- Glass airwash system for a cleaner view of the flames
- EPA certified
- Stainless steel heat shield
- Non-catalytic combustion technology
- Cast iron door
- 144 CFM blower
- Proudly made in Canada
| Mobile Home Approved | No |
|---|---|
| Premium Quality Blower (CFM) | 144 CFM included |
| Certified According to Applicable Standards | CAN/USA accredited laboratory |
| Combustion Technology | Non-catalytic |
| Stainless-Steel Secondary-Air System | Yes |
| Flue Outlet Diameter | 6" |
| Recommended Chimney Diameter | 6" |
| Type of Chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum Chimney Height | 12' |
| Overall Dimension (Width) | 28 1/2" |
| Overall Dimension (Height) | 22 7/8" |
| Overall Dimension (Depth) | 26 3/4" |
| Door Type | Single, glass with cast iron frame |
| Door Opening Size (Width) | 17 1/2" |
| Door Opening Size (Height) | 9" |
| Glass Type | Ceramic glass |
| Glass Surface - W x H | 16 7/8" x 10 1/4" |
| Steel Thickness - Body | 3/16" |
| Steel Thickness - Top | 5/16" |
| Firebox Size (Width) | 21" |
| Firebox Size (Height) | 11 7/8" |
| Firebox Size (Depth) | 14 1/2" |
| Maximum Log Length | 20" |
| Log Positioning | Loading over width |
| Firebox Lined with Refractory Bricks | Yes |
| Baffle Type | High quality vermiculite |
| Minimum Fireplace Opening (Width) | 28 7/8" |
| Minimum Fireplace Opening (Height) | 23 3/8" |
| Minimum Fireplace Opening (Depth) | 15 3/4" |
| High-Efficiency Certified Appliance | Yes, EPA 2020 certified |
| Canadian Standard (Emissions) | CSA B415.1-10 |
| USA Standard (Emissions) | EPA |
| Canadian Standard (Safety) | ULC S628 |
| USA Standard (Safety) | UL 1482, UL 737 |
| Warranty | Limited lifetime |
| Shipping Weight | 399 lb (181 kg) |
