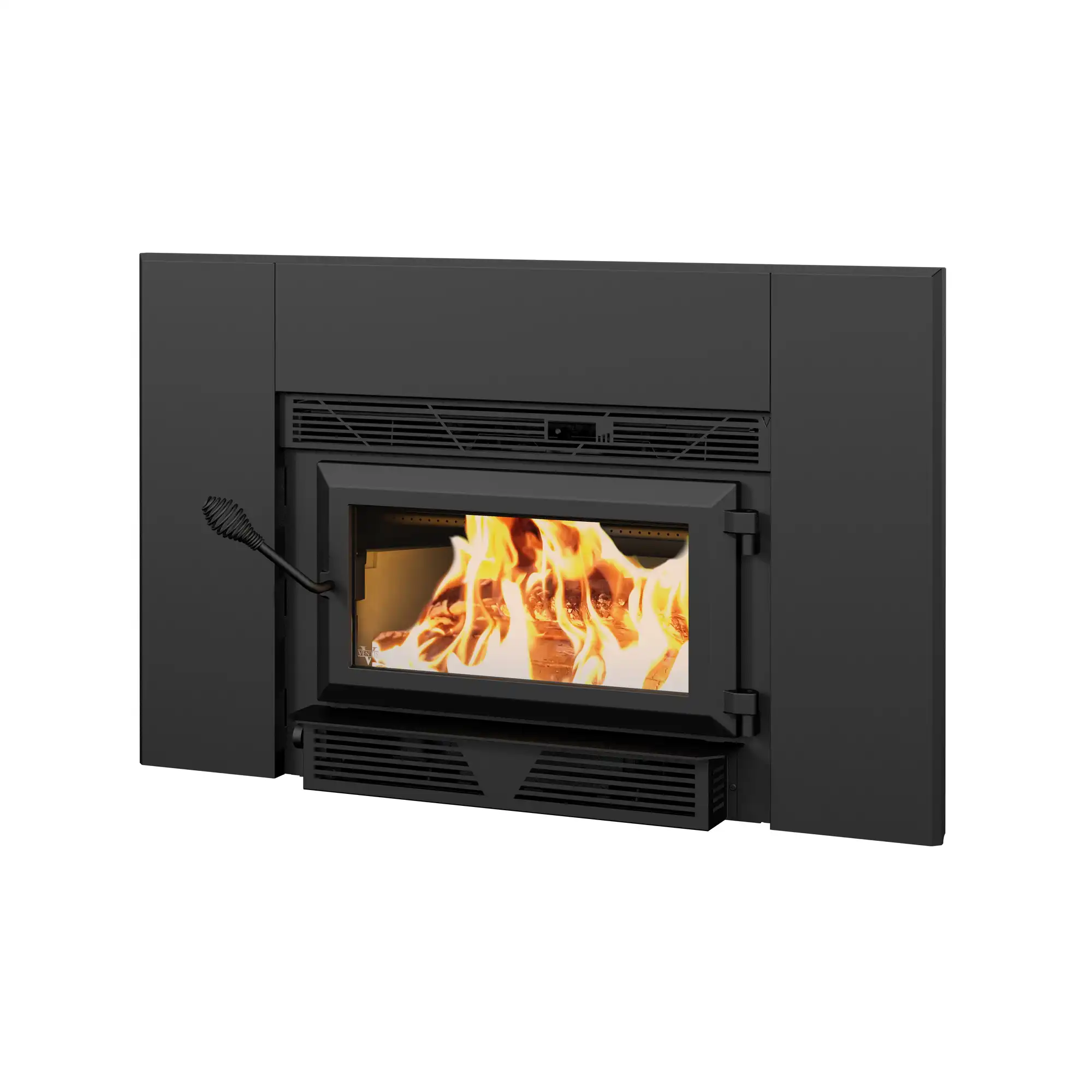

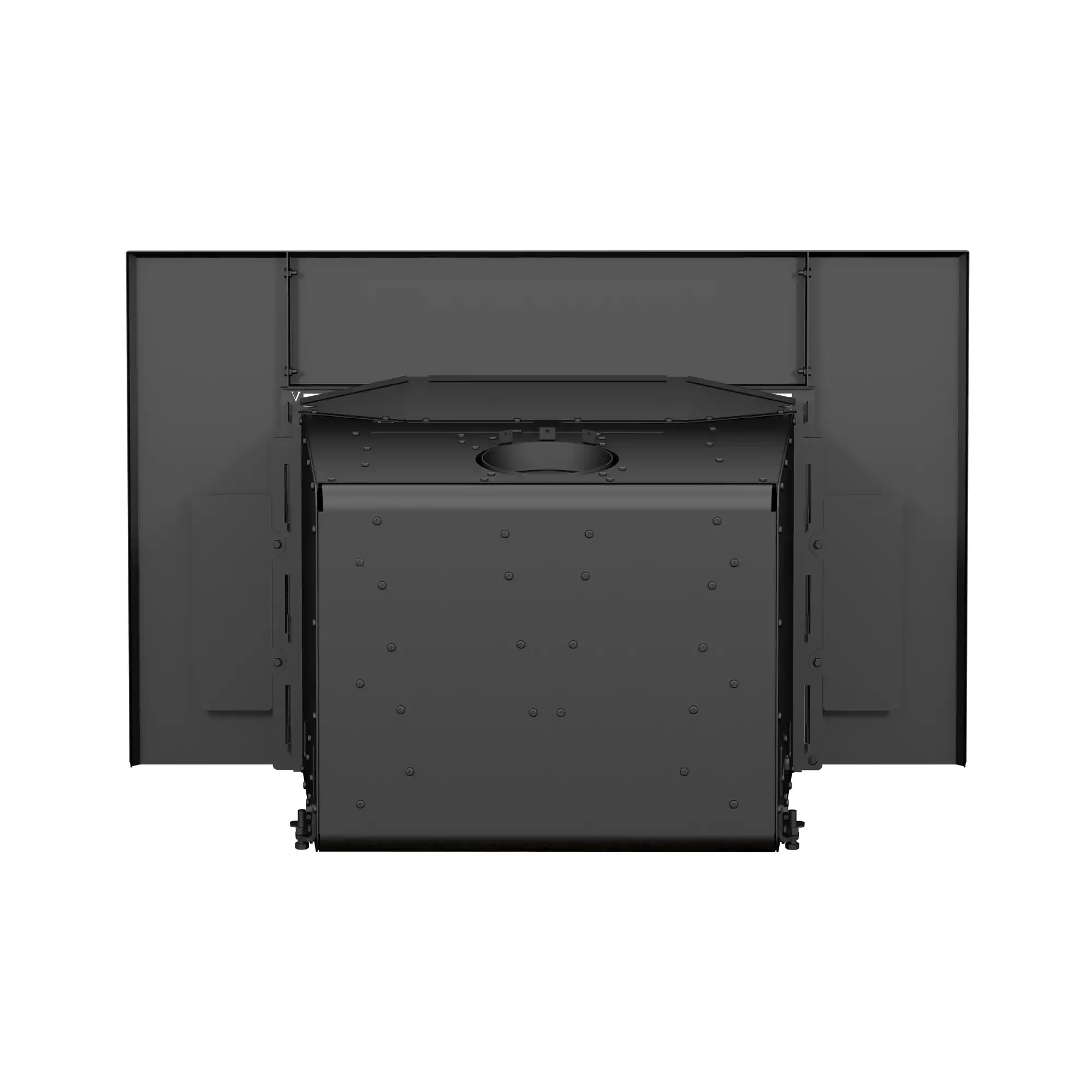

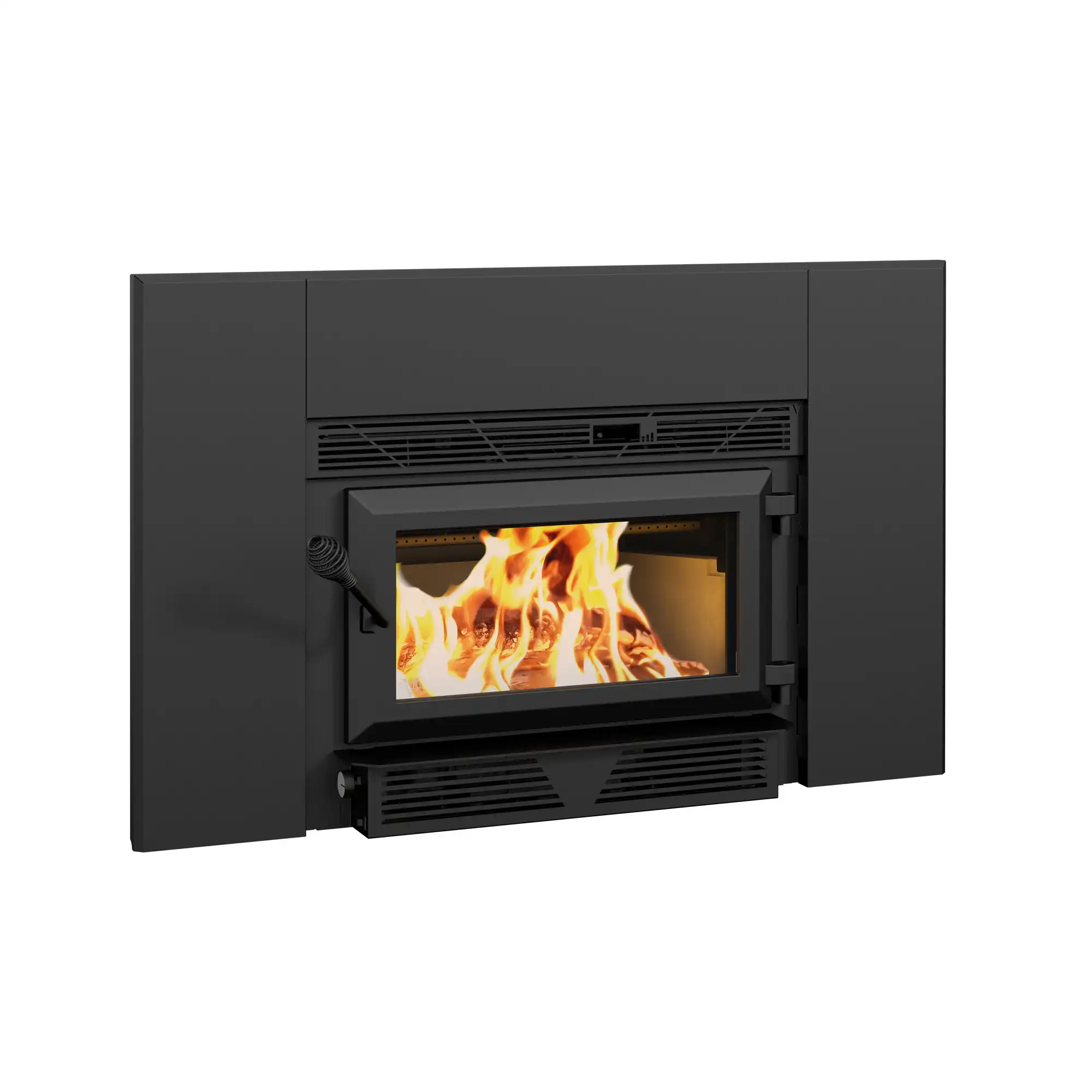

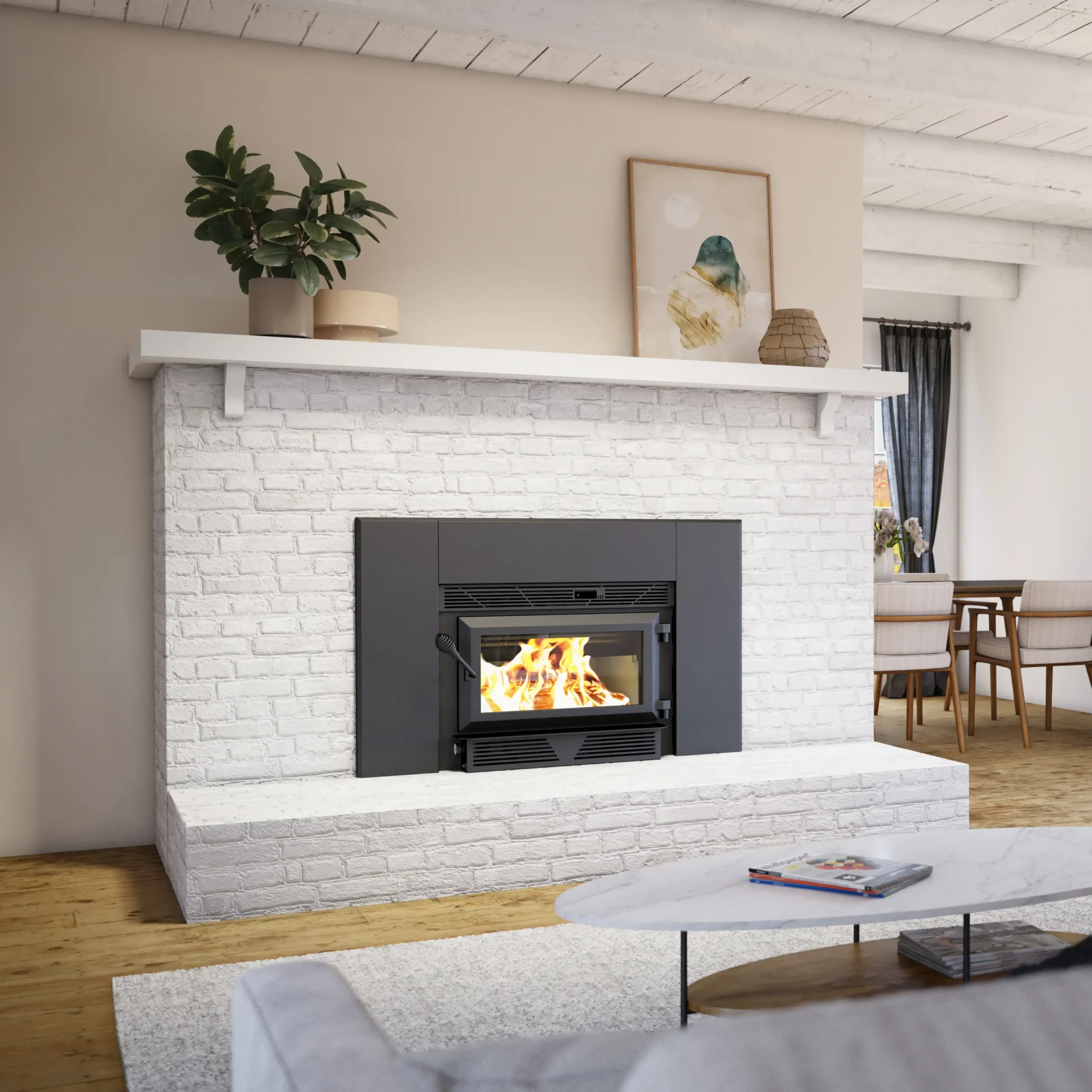

Ventis Wood Insert HEI190

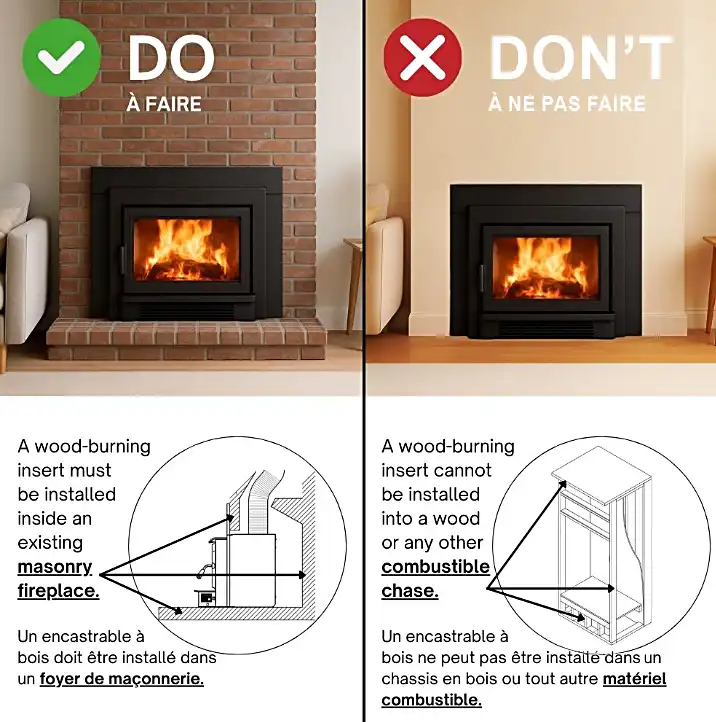

Warning: Wood-burning inserts must only be installed inside an existing masonry fireplace and never in a wooden or combustible structure.
Required option: regular faceplate (VBA1545)
- Small-sized wood insert suitable for tighter spaces
- Tapered shape (top and sides) that simplifies installation in small masonry hearths
- Glass airwash system for a cleaner view of the flames
- EPA certified
- Best-in-class performance with an efficiency rate of 75%
- C-Cast heat shield added to the firestop
- Non-catalytic combustion technology
- Cast iron door
- 90 CFM blower with right/left powercord
- Proudly made in Canada
| Mobile Home Approved | No |
|---|---|
| Premium Quality Blower (CFM) | 90 CFM Included |
| Certified According to Applicable Standards | CAN/USA accredited laboratory |
| Combustion Technology | Non-catalytic |
| Stainless-Steel Secondary-Air System | Yes |

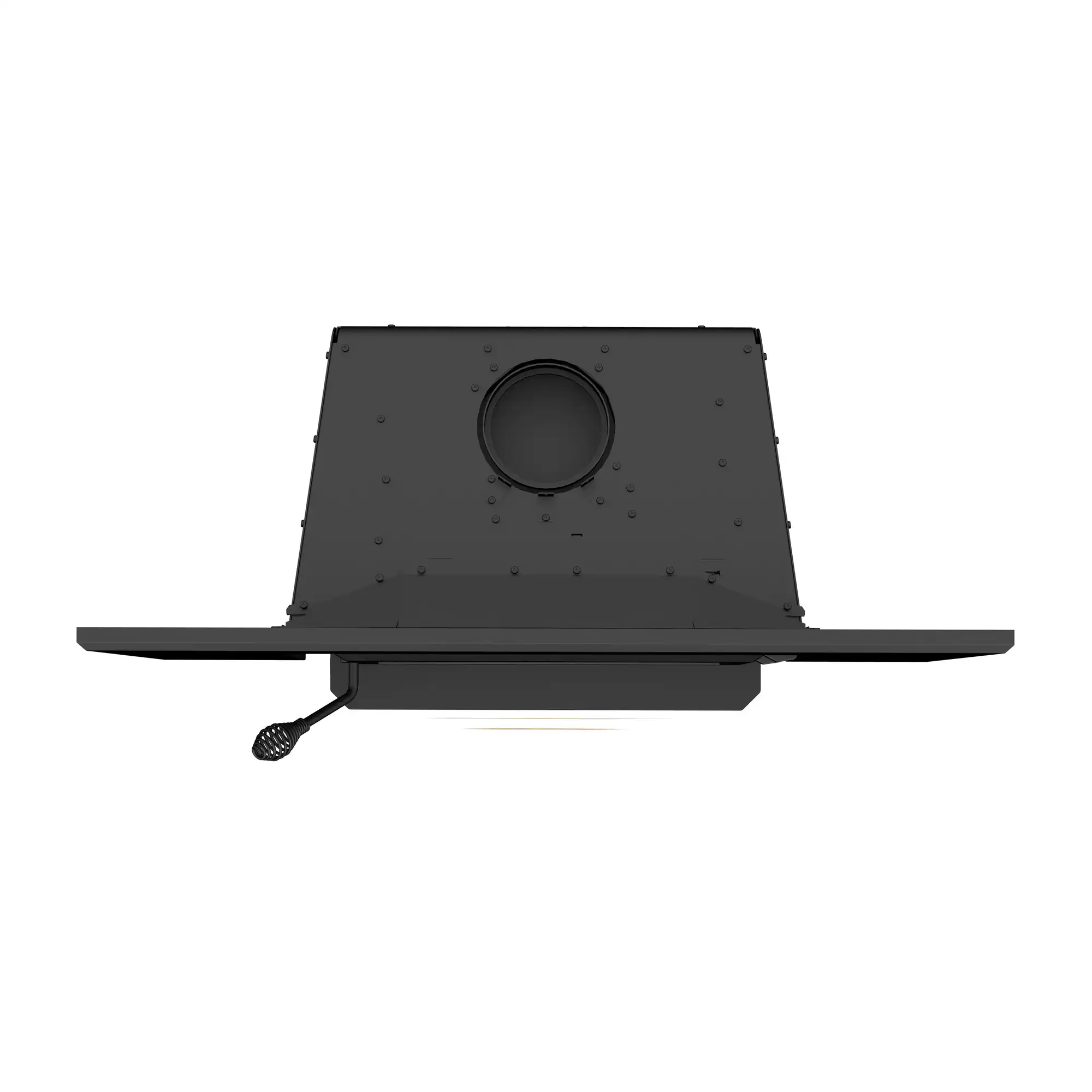

| Flue Outlet Diameter | 6" |
| Recommended Chimney Diameter | 6" |
| Type of Chimney | ULC-S635, CAN/ULC-S640, UL 1777 |
| Minimum Chimney Height | 12' |
| Overall Dimension (Width) | 27 7/8" |
| Overall Dimension (Height) | 20 1/8" |
| Overall Dimension (Depth) | 20" |
| Door Type | Single, glass with cast iron frame |
| Door Opening Size (Width) | 18 1/4" |
| Door Opening Size (Height) | 7 7/8" |
| Glass Type | Ceramic glass |
| Glass Surface - W x H | 17 7/8" x 8" |
| Steel Thickness - Body | 3/16" |
| Steel Thickness - Top | 3/16" |
| Firebox Size (Width) | 16 3/4" |
| Firebox Size (Height) | 8 7/8" |
| Firebox Size (Depth) | 12 3/8" |
| Maximum Log Length | 17" (16" recommended) |
| Log Positioning | Loading over width |
| Firebox Lined with Refractory Bricks | Yes |
| Baffle Type | C-Cast or equivalent |
| Minimum Fireplace Opening (Width) | 25" |
| Minimum Fireplace Opening (Height) | 19" |
| Minimum Fireplace Opening (Depth) | 15 1/2" |
| High-Efficiency Certified Appliance | Yes, EPA 2020 approved |
| Canadian Standard (Emissions) | CSA B415.1-10 |
| USA Standard (Emissions) | EPA |
| Canadian Standard (Safety) | ULC S628 |
| USA Standard (Safety) | UL 1482, UL 737 |
| Warranty | Limited 5 Years |
| Shipping Weight | 287 lb (130 kg) |
