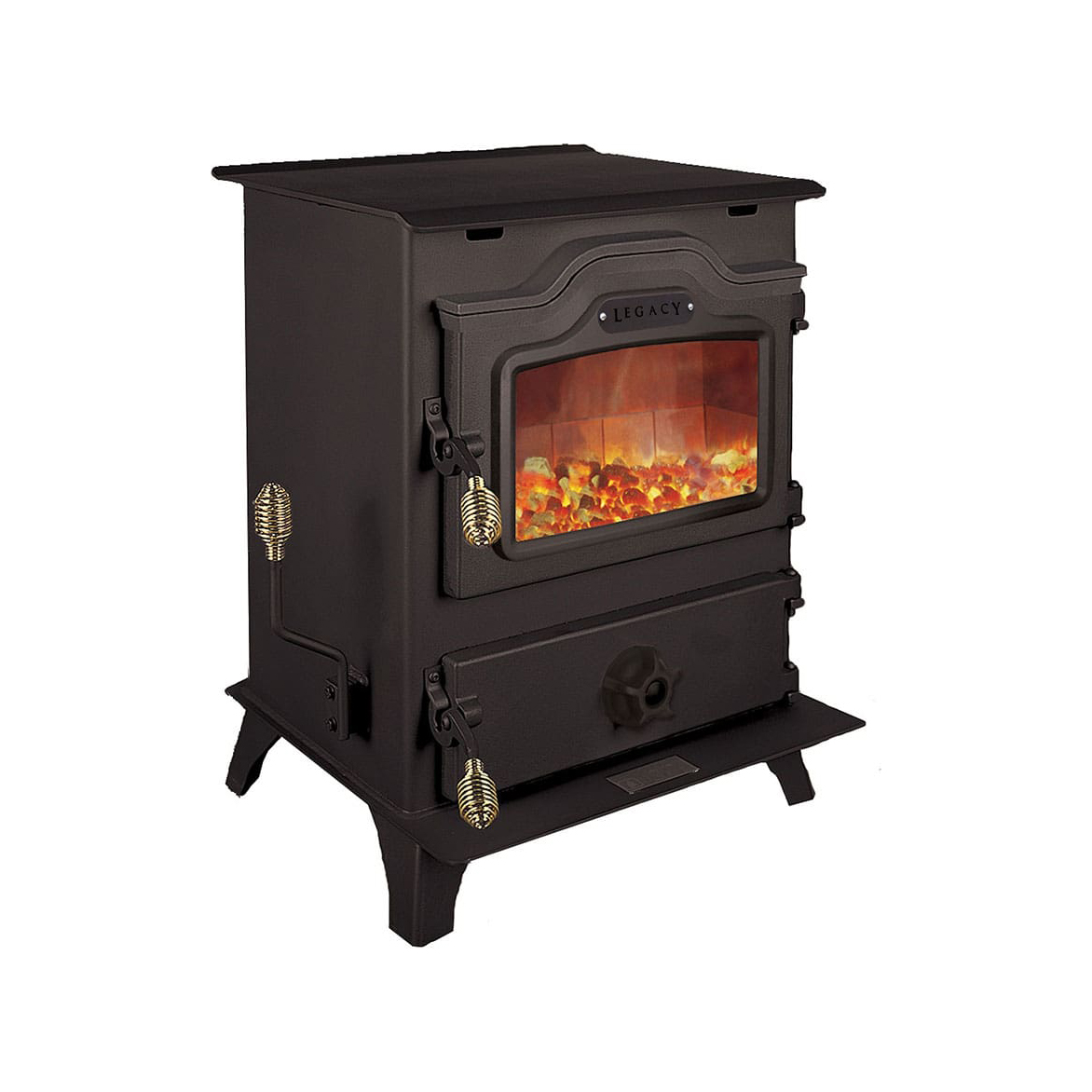

Legacy Stoves Mark III

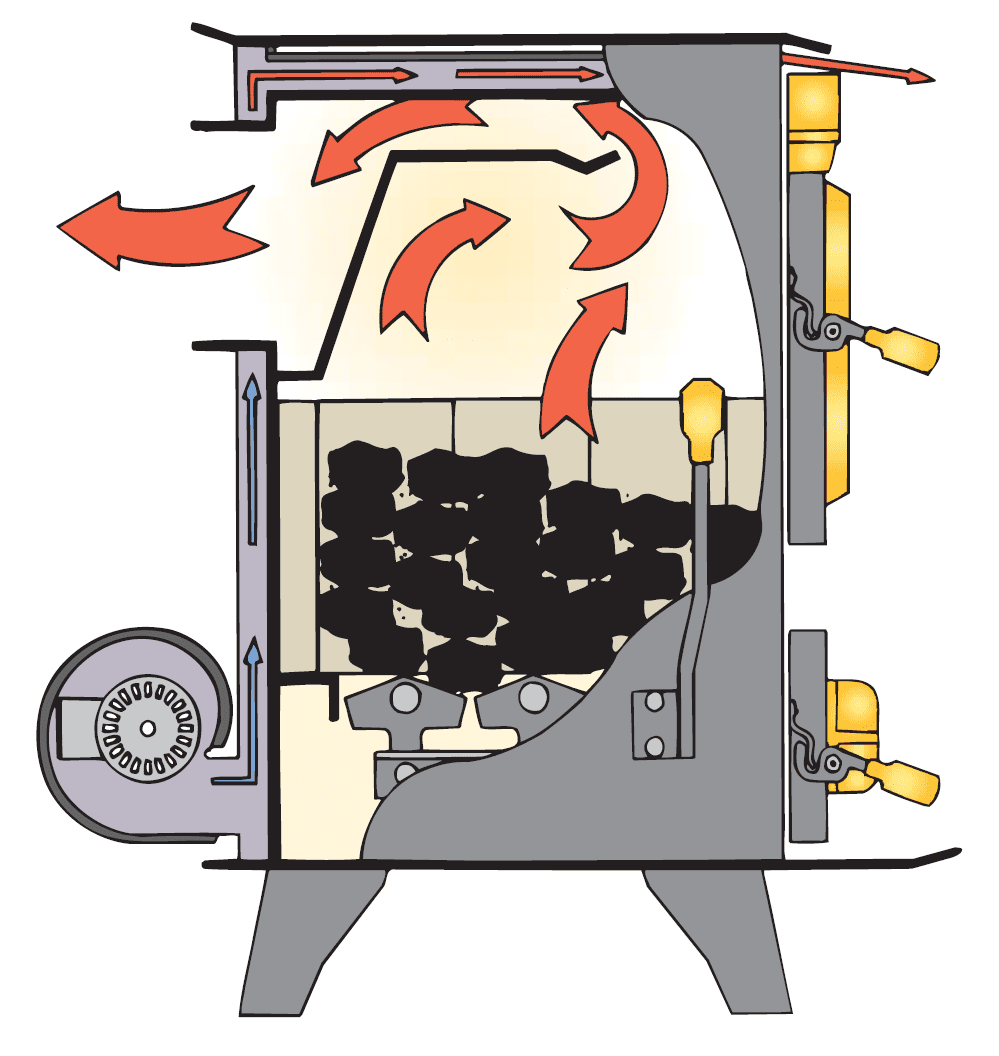

A sophisticated Coal Stove – Mark III contains enough power to heat homes up to 3,500 square feet. From a single piece of ¼-inch steel, the body is formed and welded by our skilled team. Distributes heat around your house with a blower system and a baffle that’s specially designed to be efficient yet very rugged. With the option of a stainless steel residential hot water coil, utility costs are reduced even more.
- From each load of coal, burn time up to 24 hours
- Heating is extended by burning coal to fine ash with the Legacy Grate System
- 92,000 BTUs — Based on climate and home efficiency, heats 1,900 to 3,500 square feet
- Standard blower (135 CFM)
- Legacy Grate System
- Spiral Chamber
| BTU Hour/Input | 92,000 |
|---|---|
| Heating Capacity | 1,900 – 3,500 sq ft. |
| Fuel Type | Pea, nut or stove Anthracite and Bituminous Coal |
| Flue Size | 6 inches |
| Blower Size | 135 cfm |
| Weight (Standard) | 530 lbs |
| Domestic Hot Water Coil | Optional |
| Number of Grates | 3 |
| Ash Pan | Standard |
| Glass Door | Standard |
| Heat Collector | N/A |
| Adjustable Feet | N/A |
| Front Width | 25" |
| Height | 32 1/2" |
| Depth | 24" |
| Floor to Flue Center | 25 1/2" |
| Glass Size | 14 15/16" – 8 1/2" |
| Firebox Dimensions | D=14 W=20.5 H=11 |
| Approved Testing | UL |
