DS Stoves Dawn Series 40S
Model: DS40S-SP
40,000 – 41,000 BTU

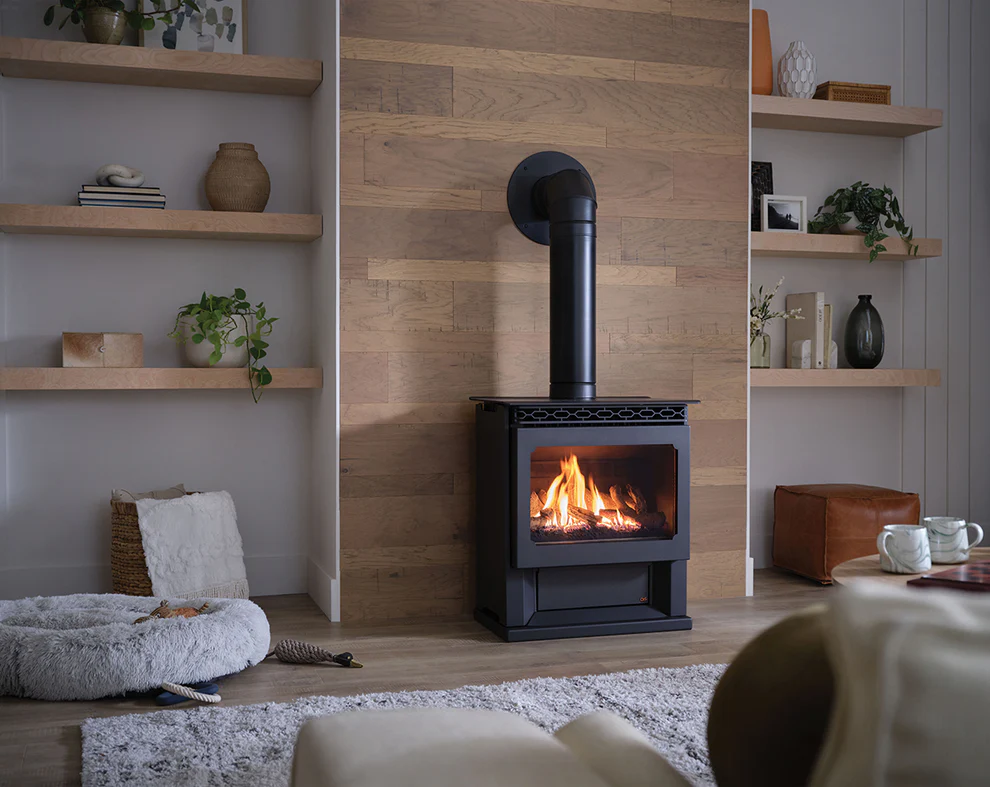

Direct Vent Freestanding Gas Stove
Made In Lancaster County, PA
The Rise of Quality & Performance
For over 45 years, DS Stoves has provided exceptional heating and cooking solutions. Now, we’re ushering in the rise of Quality & Performance in Gas Heating with the Dawn Series stove. This model boasts a fresh design, reliable heat, and a robust warranty. With over 40,000 BTUs, a high-efficiency heat exchanger, IPI and SP models, it offers unparalleled performance. Built by master craftsman in Lancaster, Pennsylvania, this stove is the epitome of quality, warmth, and light for every home.
| Fuel | Natural Gas (NG) or Propane (LP) |
|---|---|
| BTU High Input | (NG) 40,000, (LP) 41,000 |
| BTU Low Input | (NG) 22,000, (LP) 20,000 |
| Steady State Efficiency % | (NG) 81, (LP) 82.2 |
| P4 High Burn Efficiency % | (NG) 76.6, (LP) 79.2 |
| P4 Efficiency % | (NG) IPI: 73.6, SP: 71.9 (LP) IPI: 73.3, SP: 71.5 |

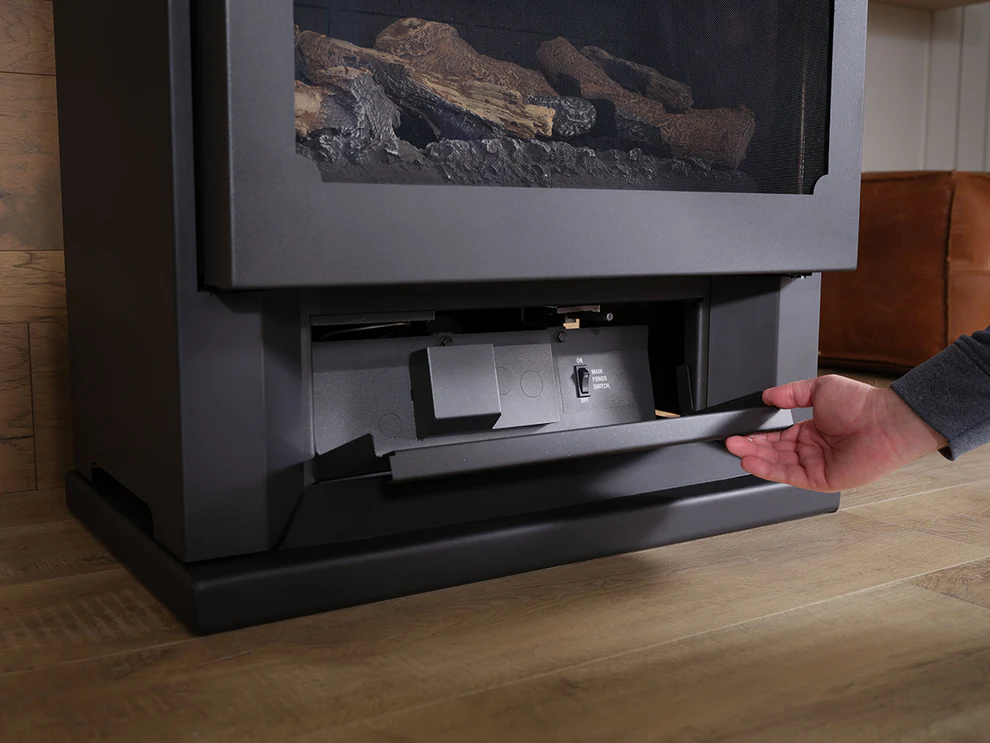

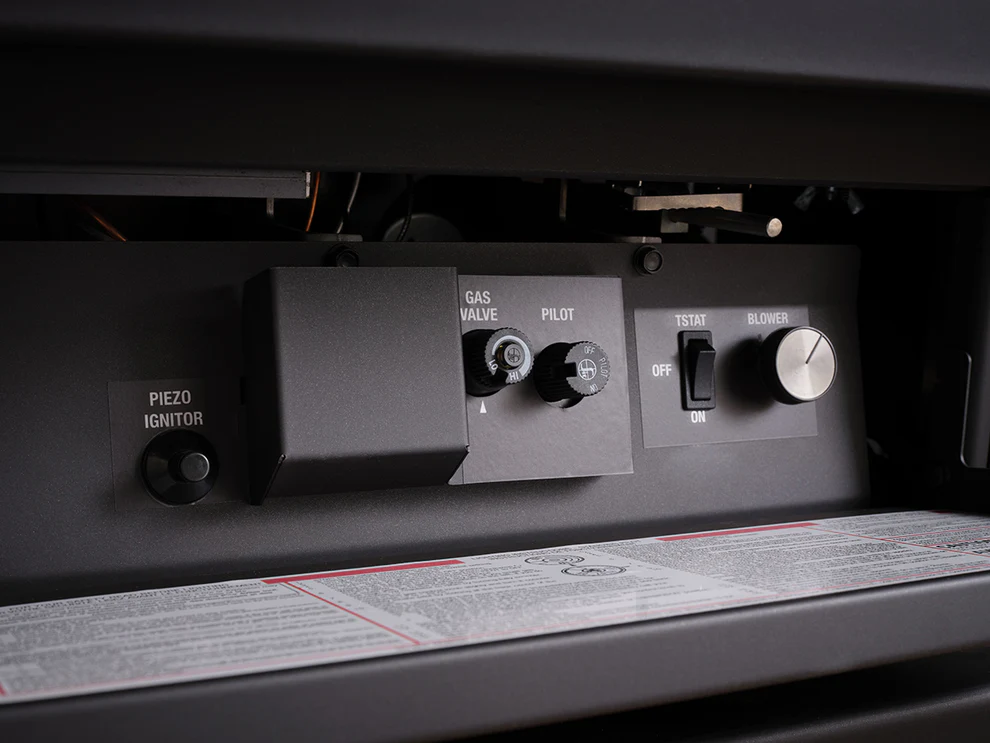

| Valve System | Intermittent Pilot Ignition (IPI) or Standing Pilot (SP) |
| Propane Conversion Kit | IPI (Optional), SP (Included) |
| Heating Area | Up To 2,000 sq. ft. |
| Viewing Area (WxH) | 21” x 13” (273 sq. in.) |
| Anti-Reflective Glass | Standard |
| Invisimesh Screen Barrier | Standard |
| Ceramic Oak Log Set | Standard |
| Ceramic Burner | Standard |
| Laser Cut Steel Brick Panel Set | Standard |

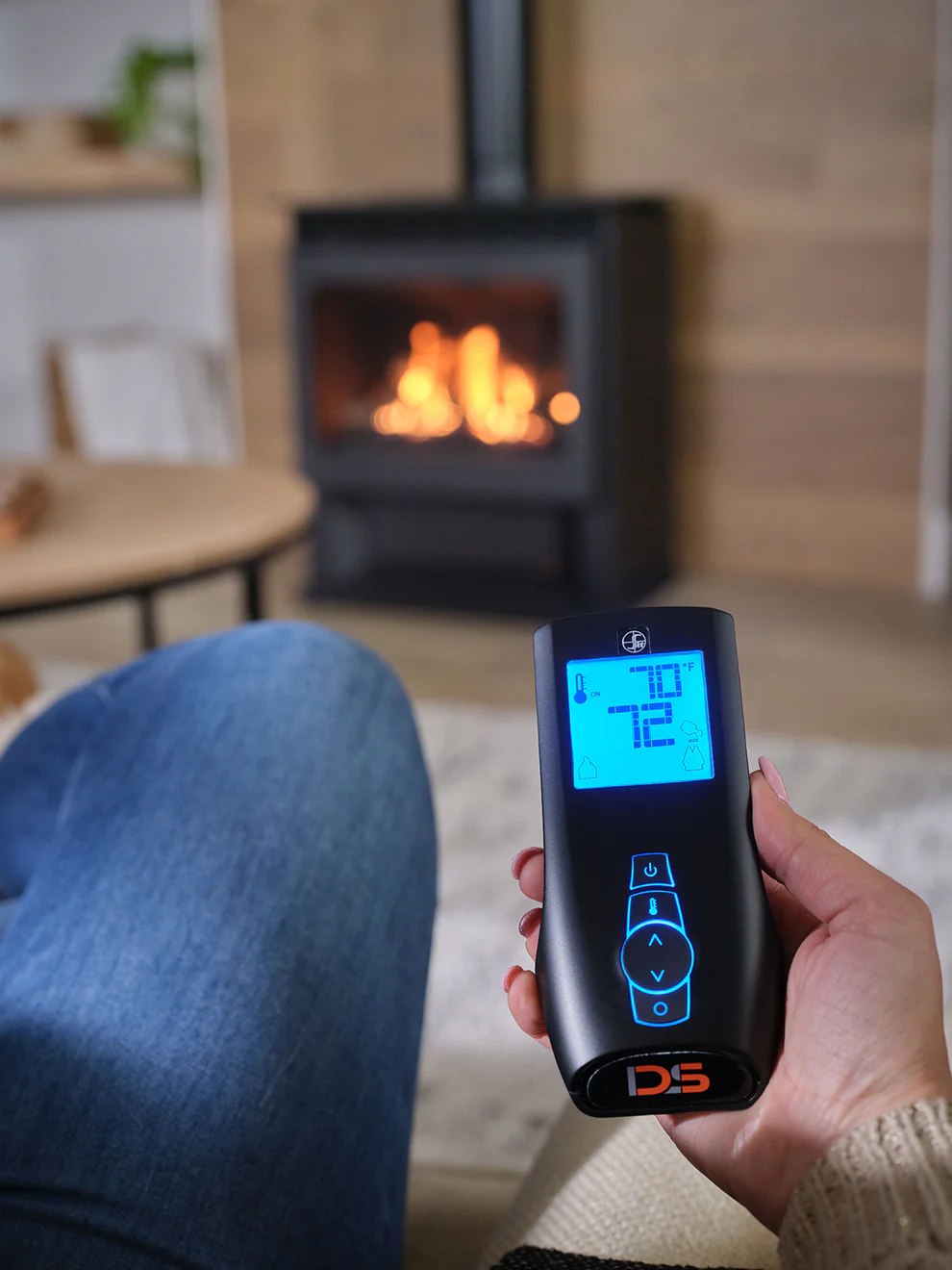

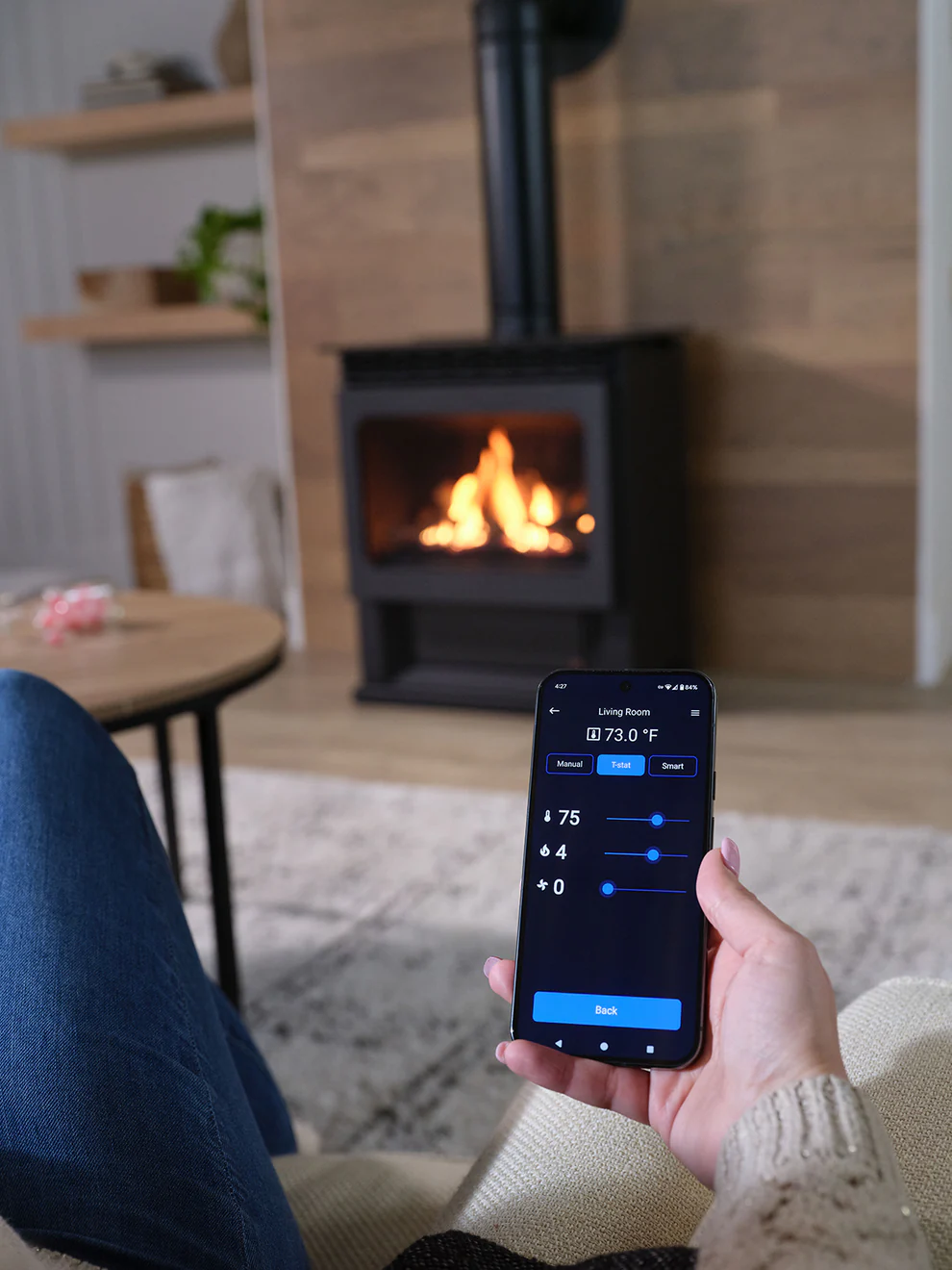

| ProFlame II Remote / Thermostat | IPI (Standard) |

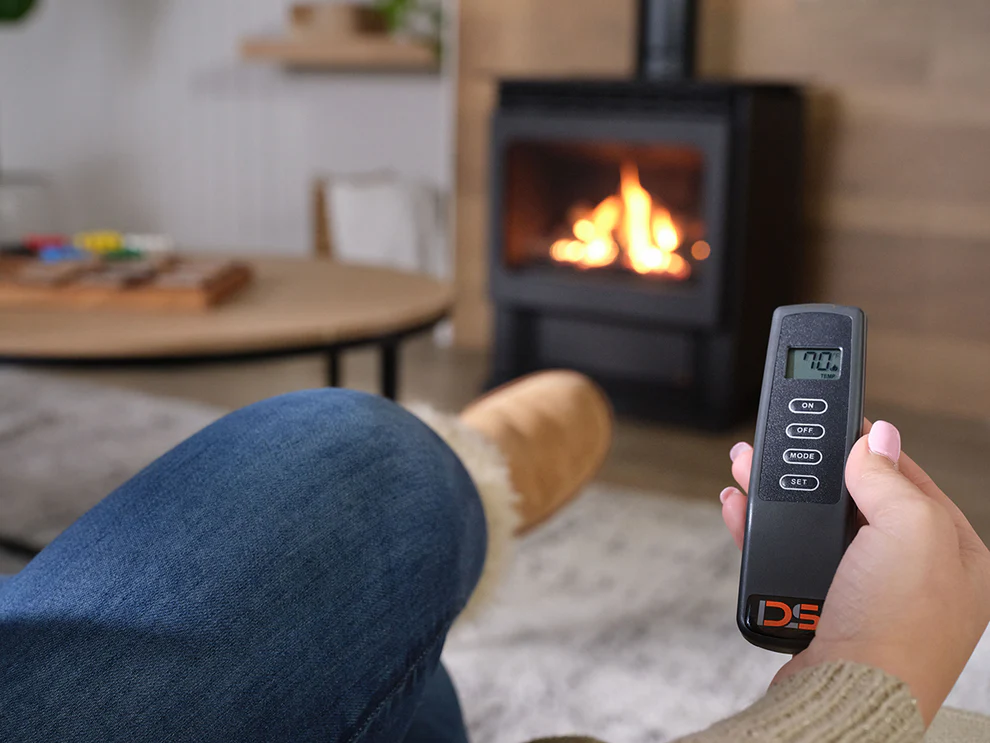

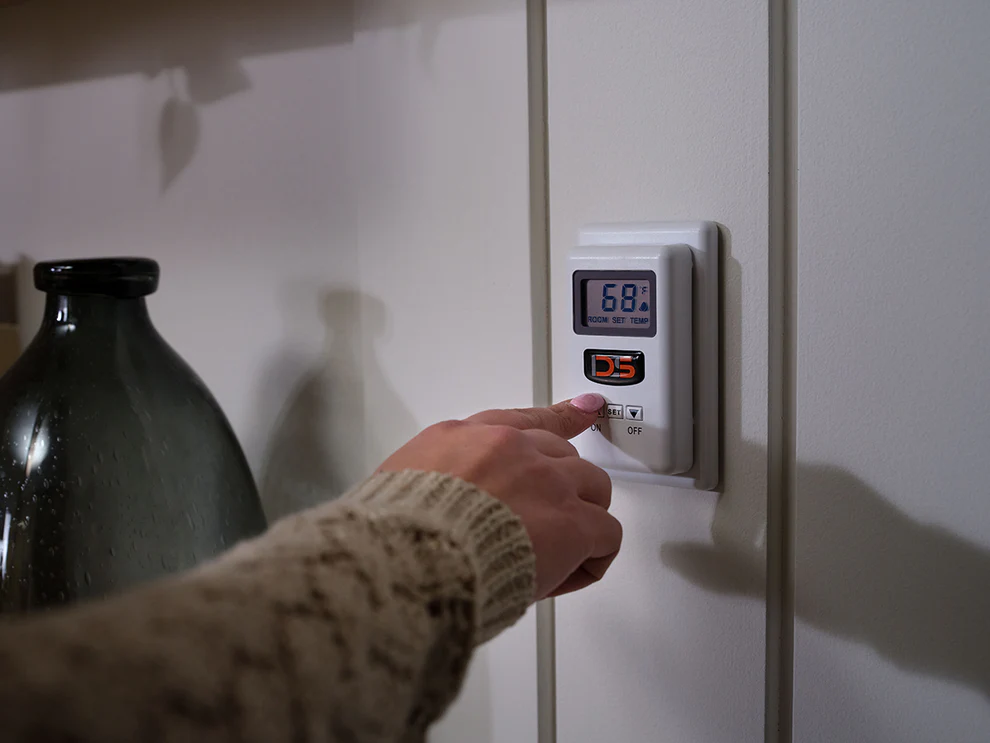

| Remote, Thermostat, Wall Switch | SP (Optional) |
| 141 CFM Variable Speed Blower | Standard |

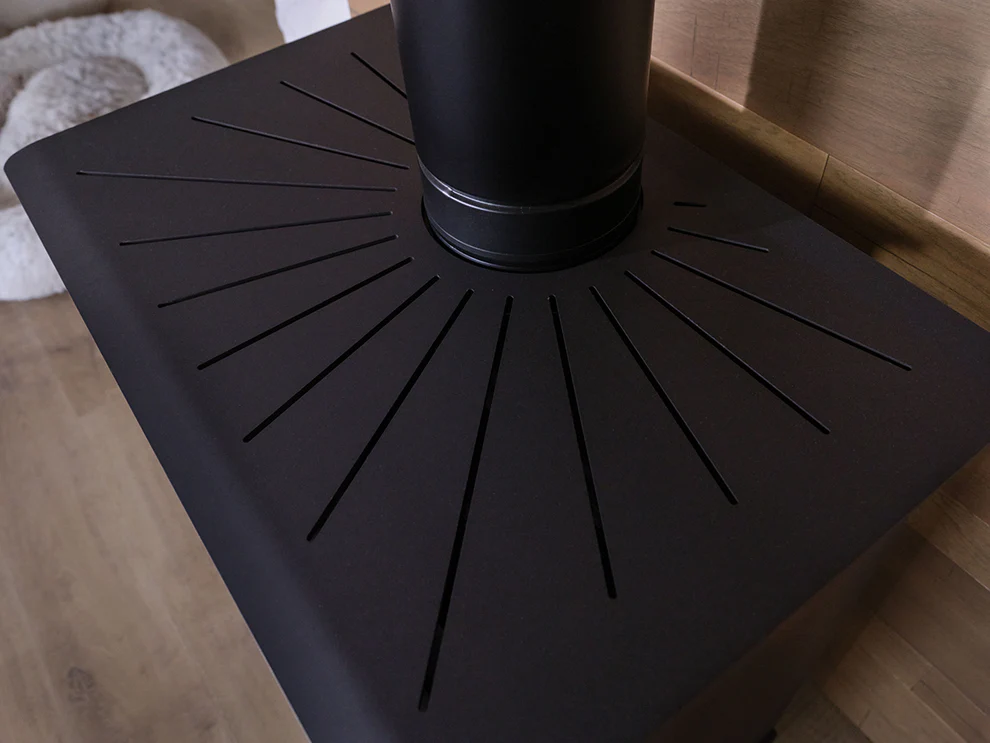

| Top Exhaust | 4” Direct Vent |
| Overall Size (WxDxH) | 28” x 19.127” x 31.6” |
| Standard Weight | 330 lbs (149.7 kg) |
| Safety Tested | Yes |
