DS Stoves Anthra-Max

Model: DSXV14, DSXV15, and DSXV16
55,000 – 105,000 BTU
Freestanding Anthracite Coal Hopper-Fed Stove

Made In Lancaster County, PA

View Full Product Description

Request Pricing

Coal Stoves | Hand-Fired | Stoves

Ultimate Efficiency & Practicality
Efficiency and function is the focus of the Anthra-Max. Designed for the first floor or basement, the Anthra-Max is more than a great looking stove, it will heat your entire home without breaking a sweat!

Fuel	Anthracite
Heating Area	(XV14) 500 – 1,400 sq. ft. (XV15) 1,000 – 2,000 sq. ft. (XV16) 1,500 – 2,500 sq. ft.
BTU	(XV14) 55,000 (XV15) 72,000 (XV16) 105,000
Efficiency	82.8%
Fire Box (WxDxH):	(XV14) 16” x 12” x 14” (XV15) 16” x 16” x 14” (XV16) 16” x 20” 14”
Fire Box Height To Hopper	1.5”
Fire Box Volume	(XV14) 1.55 cu. ft. (XV15) 2.0 cu. ft. (XV16) 2.60 cu. ft.
Fire Door (WxH)	18.25” x 11.75”

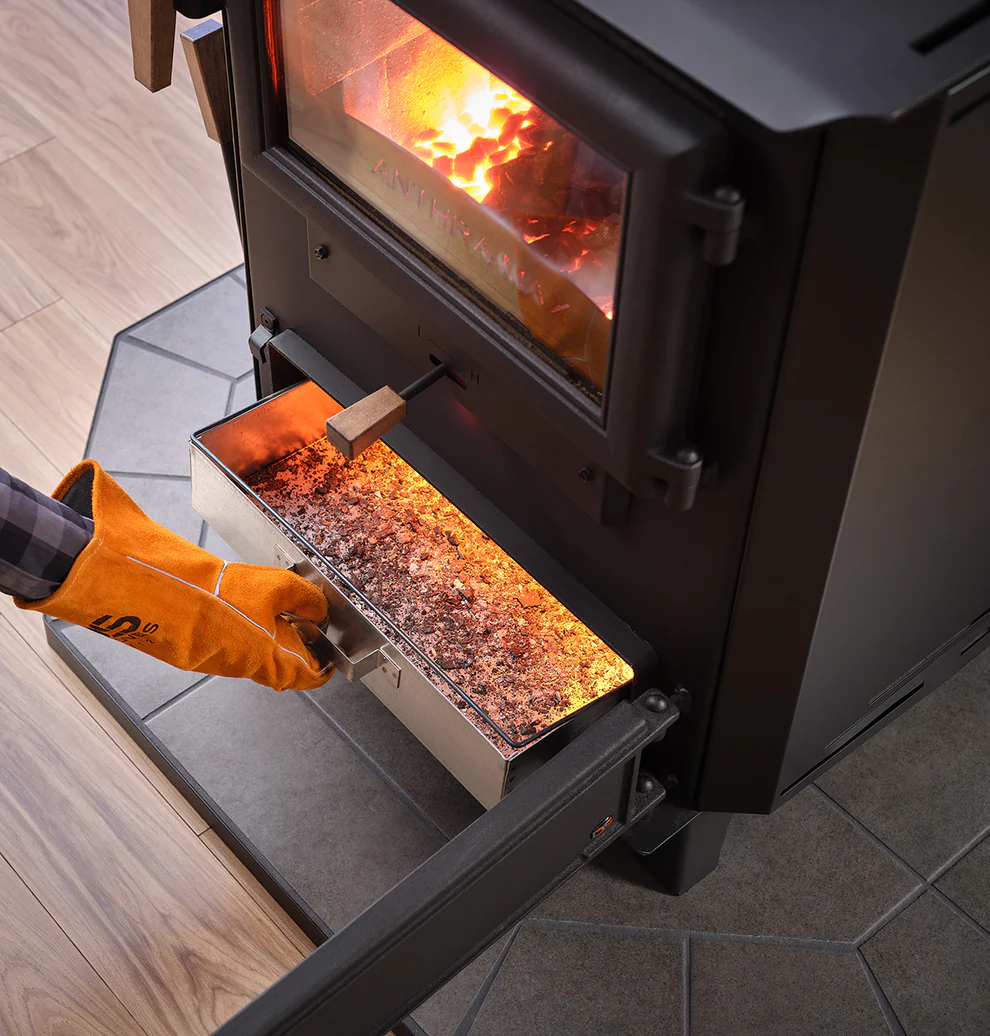

Ash Pan (WxDxH)	(XV14) 18” x 12” x 3.5” (XV15) 18” x 16” x 3.5” (XV16) 18” x 20” x 3.5”
Ash Door (WxH)	19” x 5.25”

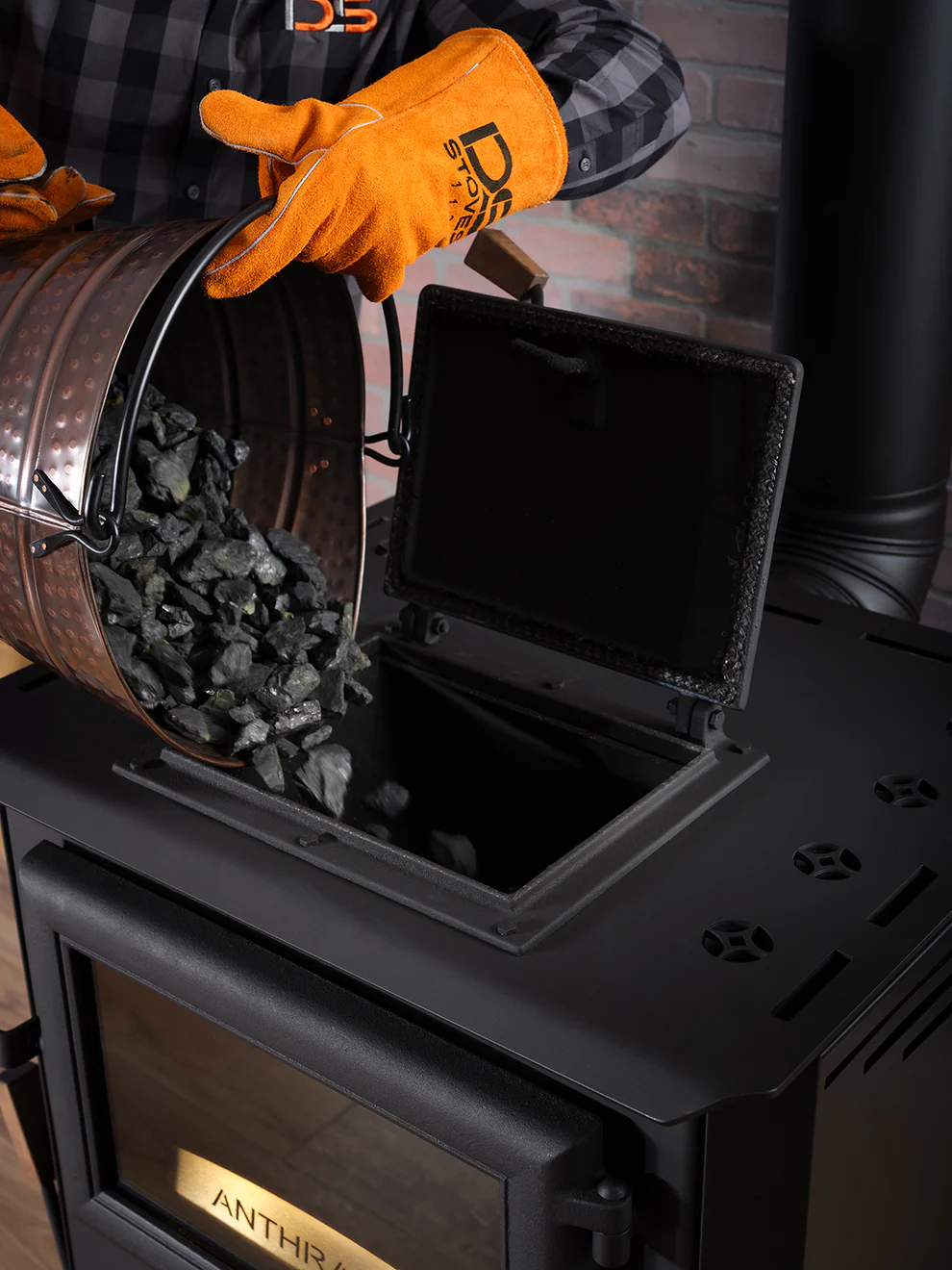

Hopper Capacity	40 lbs.
Total Capacity w/ Hopper	(XV14) 85 lbs. (XV15) 110 lbs. (XV16) 130 lbs.
Hopper Door (WxD)	11.75” x 8.5”
Rear Exhaust	6” (32.25” To Center)
Optional Blower CFM	160
Optional Cover Lid	Available For All Models
Optional Step Top	(XV14) N/A (XV15) Available (XV16) Available
Size w/ Living Room Sides (WxDxH)	(XV14) 28.5” x 22.5” x 39.5” (XV15) 28.5” x 26.5” x 39.5” (XV16) 28.5” x 31.5” x 39.5”
Size w/ Basement Sides (WxDxH)	(XV14) N/A (XV15) 34.5” x 26.5” x 39.5” (XV16) 34.5” x 31.5” x 39.5”
Weight	(XV14) 490 lbs. (XV15) 590 lbs. (XV16) 650 lbs.
U.L. Tested	Yes
